A comprehensive look at the features and functionality of the Löwenstein prisma SMART Max CPAP/APAP Machine, a European competitor to more widely known North American models.
Choosing the right CPAP or APAP machine can feel overwhelming when you’re balancing therapeutic needs, comfort preferences, and long-term reliability. For patients with obstructive sleep apnea (OSA), the machine you select becomes part of your nightly routine for years to come.
Brands like ResMed and Philips Respironics dominate the North American market. But European manufacturers like Löwenstein Medical have built a strong reputation for precision engineering and quiet operation.
The prisma SMART Max represents their flagship auto-adjusting positive airway pressure device. It combines German engineering with thoughtful features designed to make therapy easier to stick with night after night.
This review takes an in-depth look at the Löwenstein prisma SMART Max CPAP/APAP Machine with prismaAQUA Humidifier to help you understand whether it’s the right fit for your sleep apnea therapy needs.

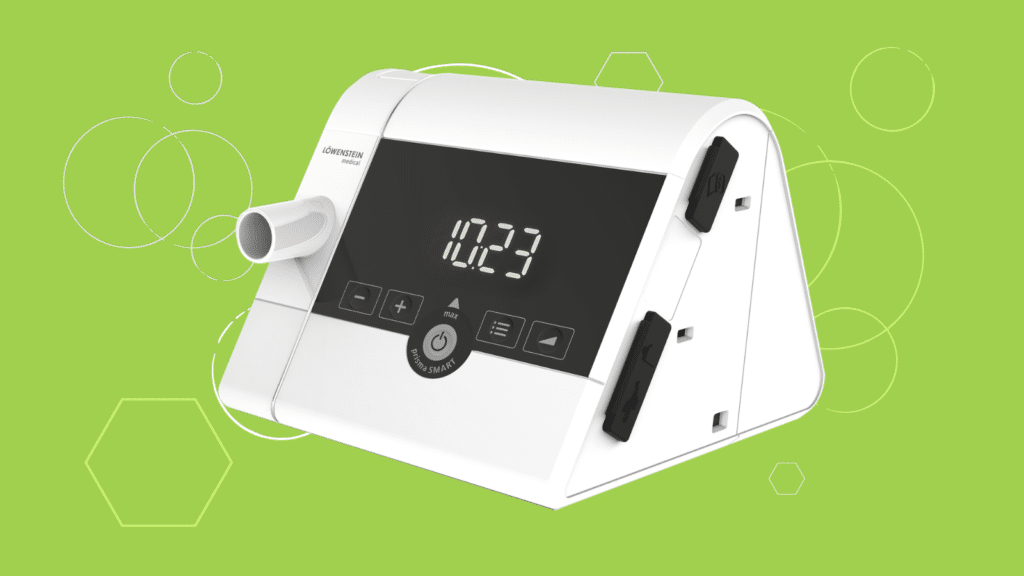

Löwenstein prisma SMART Max Product Size and Design
The Löwenstein prisma SMART Max maintains a compact footprint that fits comfortably on most bedside tables. The complete system measures approximately 17cm wide, 13.5cm tall, and 18cm deep when the prismaAQUA humidifier is attached.
Weighing just 1.34kg without the humidifier, it’s light enough to move around your bedroom or pack for travel without adding significant weight to your bag. The triangular design with rounded edges gives it a modern, almost futuristic appearance. It doesn’t immediately stand out as medical equipment.
The matte white finish and clean lines help it blend into most bedroom aesthetics. A color LCD display sits prominently on the front panel. A simple dial-and-press interface sits below for navigation. The streamlined design means fewer crevices to collect dust and easier cleaning overall.
This combination of manageable size and thoughtful design accommodates most sleeping arrangements. You can place it on a bedside table, headboard shelf, or nearby furniture.
prisma SMART Performance
Despite its compact size, the prisma SMART Max delivers therapy across a wide pressure range. The device operates from 4 cmH2O to 20 cmH2O, covering most prescriptions for patients with mild to severe obstructive sleep apnea.
The machine runs remarkably quietly, with a sound pressure level of approximately 26 dB(A) at 10 hPa. That’s roughly equivalent to a whisper or a computer fan. When the humidifier is attached, the noise level increases only slightly to around 27.5 dB(A).
This near-silent operation helps ensure both you and your sleeping partner can sleep without disruption from machine noise.
As an APAP (auto-adjusting positive airway pressure) device, the prisma SMART Max continuously monitors your breathing patterns throughout the night. When it detects apnea or hypopnea events, flow limitations, or snoring, it adjusts the pressure automatically to maintain optimal airway patency. This automatic adjustment means you’re getting exactly the pressure you need at any given moment. You’re not stuck with a fixed continuous positive airway pressure setting that may be higher than necessary.
The sophisticated algorithm responds in real-time to changes in your breathing, sleep position, and airway resistance. This adaptive approach can make therapy more comfortable than fixed CPAP. It’s especially helpful for patients who find higher continuous pressures uncomfortable or difficult to tolerate.
Included CPAP Machine Parts and Accessories
The Löwenstein prisma SMART Max package includes almost everything you need to begin therapy:
- prisma SMART Max machine
- prismaAQUA heated humidifier
- Humidifier water chamber
- 19mm standard tubing (6 feet)
- Power supply and power cord
- Carrying case for travel
- Two reusable foam filters
- User manual
Optional accessories available separately include:
- CozyLine 6ft heated tubing with AC adapter
- Additional replacement filters
- Various CPAP masks compatible with the system
- External battery options for camping or power outages
For most users, this comprehensive package means you only need to select your preferred mask before starting therapy.
We offer packages both with the mask and without to help you find an option that suits your need and budget.
Key Features of the Löwenstein prisma SMART Max
The prisma SMART Max includes features designed to make nightly therapy more comfortable and sustainable over the long term.
Auto-Adjusting Pressure with Advanced Algorithm
The core strength of any APAP machine lies in its algorithm. The prisma SMART Max uses Löwenstein’s proprietary algorithm to monitor respiratory events and adjust pressure delivery throughout the night.
The system detects obstructive apneas, hypopneas, flow limitations, snoring, and respiratory effort-related arousals (RERAs). When it identifies an event, it responds by increasing pressure to reopen the airway.
SoftPAP Pressure Relief Technology
Exhaling against continuous positive airway pressure can feel unnatural, especially at higher pressure settings. The prisma SMART Max includes SoftPAP technology. It provides pressure relief during exhalation to make breathing feel more natural.
You can adjust SoftPAP across three levels. This lets you find the balance between comfort and therapeutic effectiveness. Unlike some machines that offer only fixed relief settings, this adjustability lets you fine-tune the experience to match your preferences.
This breathing relief feature is particularly helpful for new CPAP users who are still adjusting to therapy. It’s also valuable for patients transitioning from BiPAP (bi-level positive airway pressure) devices who prefer distinct inhalation and exhalation pressures.
Integrated Heated Humidification

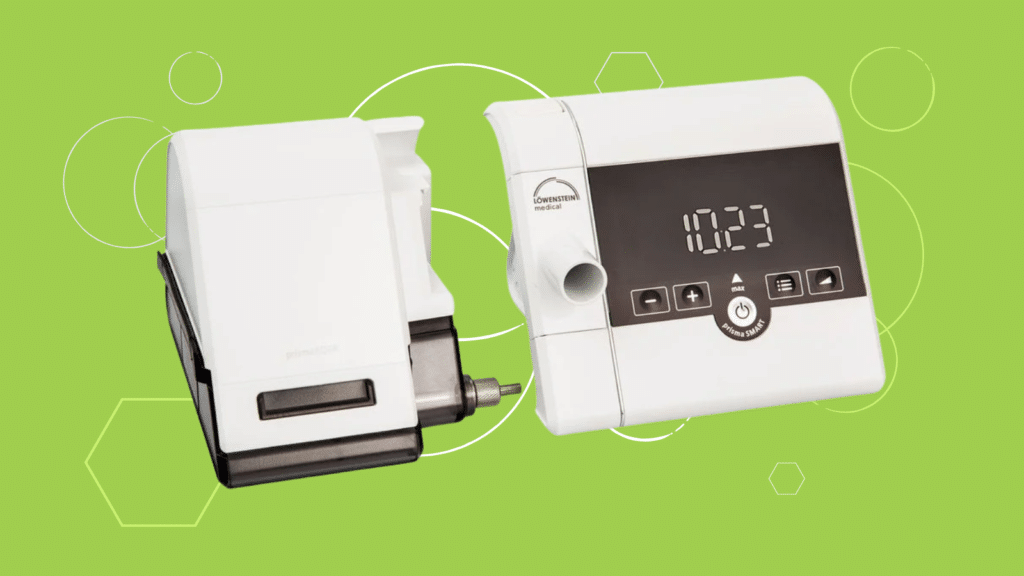

Dry airways are one of the most common causes of discomfort when using a CPAP machine. The built-in prismaAQUA humidifier adds warmth and moisture to the air before it reaches your mask. This helps prevent dry mouth, nasal congestion, and throat irritation.
The humidifier chamber holds enough water for a full night of therapy at most humidity settings. You can adjust the heating level to match your comfort preferences and bedroom climate.
In dry environments or during winter months when indoor air tends to be drier, you can increase humidity. In humid climates, you can reduce or disable it entirely.
The heating element maintains consistent temperature throughout the night. This reduces the condensation, also known as rainout, that can occur when warm, moist air cools as it travels through standard tubing.
If you add the optional heated tubing, you can further minimize condensation and maintain optimal humidity delivery.
Color LCD Display with Intuitive Navigation
The prisma SMART Max features a color LCD screen that displays therapy information in a clear and easy-to-understand manner.
The interface uses straightforward menus that you navigate with a single dial control. Turn to scroll, press to select.
Key information displays on the home screen. You’ll see current pressure, therapy time, and any active features. You can access detailed therapy data, adjust humidity settings, and customize comfort features without digging through complicated submenus.
The display includes an ambient light sensor that automatically adjusts brightness based on room lighting. As you dim the lights for sleep, the screen dims to avoid disrupting your rest.
If you need to check something during the night, the display brightens just enough to see clearly without being uncomfortable or waking you more than needed.
Comprehensive Data Tracking and Connectivity
The prisma SMART Max stores detailed therapy data. This helps both you and your healthcare provider monitor treatment effectiveness.
The machine tracks:
- Therapy hours per night
- AHI (apnea-hypopnea index) levels
- Leak rates
- Pressure settings
- Compliance statistics
You can review basic information directly on the machine’s display. This includes a summary of your previous night’s therapy session.
For more detailed analysis, the machine includes both Bluetooth and cellular modem connectivity.
The Bluetooth connection allows you to sync data with compatible smartphone apps, allowing you to track trends over time and share information with your sleep specialist.
The integrated cellular modem enables automatic data transmission to your healthcare provider’s monitoring system. This eliminates the need to manually download and send therapy reports for insurance compliance or medical follow-up.
This connectivity is particularly valuable for patients who need to demonstrate therapy compliance to insurance companies. It’s also helpful for those working closely with their sleep specialist to optimize treatment settings.
SmartStart and SmartStop Functions
The prisma SMART Max includes automatic start and stop features. These eliminate the need to manually control the machine.
SmartStart begins delivering therapy pressure as soon as you take your first breath through the mask. Just put on your mask, get comfortable in bed, and breathe normally. The machine handles the rest.
SmartStop automatically turns off therapy when you remove your mask. This works whether you wake up during the night or in the morning.
These convenience features reduce the fumbling with buttons that can disrupt your bedtime routine. They also prevent you from waking more fully if you need to remove the mask during the night.
Ramp Function for Gradual Pressure Increase
Falling asleep with full therapeutic pressure can be challenging. This is especially true for new users or at higher pressure settings. The ramp function starts therapy at a lower, more comfortable pressure. It gradually increases to your prescribed level over a set time period.
You can adjust the ramp duration to match your typical time to fall asleep. This gives yourself enough time to drift off comfortably before the machine reaches full pressure. Once you’re asleep, the gradual increase is less likely to disturb you.
For patients using APAP mode, the ramp function works in conjunction with the auto-adjusting algorithm. The machine ramps up to a starting pressure. Then the algorithm takes over to adjust pressure based on your breathing patterns throughout the night.
Altitude Compensation
The prisma SMART Max automatically compensates for altitude. It adjusts pressure delivery to account for changes in atmospheric pressure. This is particularly useful if you live at elevation or travel to areas at different altitudes.
The machine adapts automatically without requiring manual adjustments. This ensures consistent therapy effectiveness whether you’re at sea level or several thousand meters above it.
Considerations
The prisma SMART Max delivers strong performance and thoughtful features. But there are a few points worth knowing before you purchase.
Less Common Brand in North America
Löwenstein Medical is well-established in Europe. It’s less widely known in Canada and the United States.
This means:
- Replacement parts and accessories may be less readily available at local suppliers
- Some respiratory therapists may be less familiar with the machine’s settings and features
If you prefer a machine with widespread support and abundant accessories, you might find other manufacturers offer more options.
That said, CPAPSupply.ca stocks compatible parts and can provide support for the prisma SMART Max.
Smaller Water Chamber
The prismaAQUA humidifier chamber is relatively compact compared to some competitors. Depending on your humidity settings, bedroom climate, and how dry your environment is, you may need to refill the chamber during the night. You might also wake up to an empty tank.
If you run high humidity levels or live in a very dry climate, consider checking the water level before bed. Keep distilled water nearby for mid-night refills if needed. Alternatively, you can experiment with lower humidity settings to extend the water supply through the night.
Standard Tubing Diameter
The prisma SMART Max uses 19mm standard tubing rather than the 15mm slimline tubing that some newer machines offer. This doesn’t affect therapy effectiveness. But the thicker tubing is slightly bulkier and may feel less flexible than slimline options.
The included 6-foot tubing provides sufficient length for most bed setups and sleeping positions. If you prefer heated tubing to further reduce condensation, you’ll need to purchase the optional CozyLine heated tubing separately.
Learning Curve for Advanced Features
Basic operation is straightforward. But accessing and customizing some of the more advanced settings requires navigating through menus. New users may need a few days to become comfortable with all the features and options available.
The user manual provides detailed instructions. Your respiratory therapist can help configure the machine during initial setup. Once you’re familiar with the interface, adjustments become much simpler.
Warranty
The Löwenstein prisma SMART Max includes a three-year manufacturer warranty covering the machine itself. The humidifier and included accessories are typically covered for 30 days from purchase.
Löwenstein Medical provides support resources including troubleshooting guides and customer service. CPAP Supply can also assist with setup questions, warranty claims, and ongoing maintenance advice.
Overall Thoughts
The Löwenstein prisma SMART Max CPAP/APAP Machine with prismaAQUA Humidifier is a solid choice for patients with obstructive sleep apnea. It’s ideal if you value quiet operation, automatic pressure adjustment, and comprehensive data tracking.
The machine’s remarkably quiet performance makes it ideal for light sleepers or anyone sharing a bedroom with a partner. The advanced algorithm responds quickly to breathing events. It adjusts pressure throughout the night to maintain effective therapy without delivering unnecessarily high pressure during stable periods.
Features like SoftPAP pressure relief, integrated heated humidification, and SmartStart/SmartStop functionality work together to make nightly therapy more comfortable and convenient. The Bluetooth and cellular modem connectivity simplify compliance tracking and communication with your healthcare provider.
If your sleep specialist has prescribed APAP therapy and you’re looking for a machine that combines European engineering precision with modern connectivity features, the prisma SMART Max delivers reliable performance in a compact, quiet package.
The machine balances advanced technology with practical, everyday usability. This makes it easier to maintain consistent therapy and achieve the restorative sleep you need.
CPAPSupply.ca carries the Löwenstein prisma SMART Max along with compatible masks and accessories. If you’d like to discuss whether this machine is right for your sleep apnea therapy needs, contact us. You can also explore our complete selection of CPAP and APAP machines.
